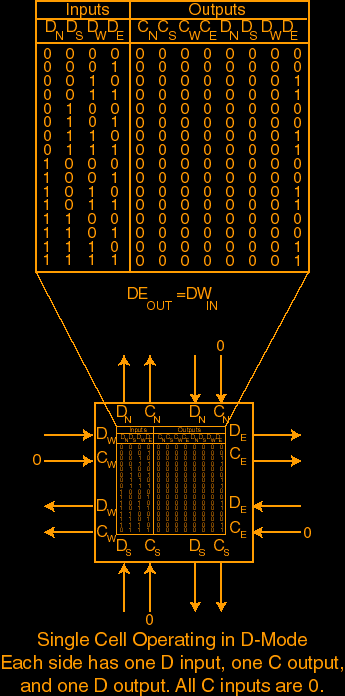

When a cell is in D-mode, it is a pure data processor. It receives n D inputs (one from each of n neighbors), and generates n D outputs and n C outputs. A truth table contained within the cell describes
what outputs should be produced for the given set of D input values.
more.
